HL-030126
Hunglin
4411142900
PRODUCT DESCRIPTION

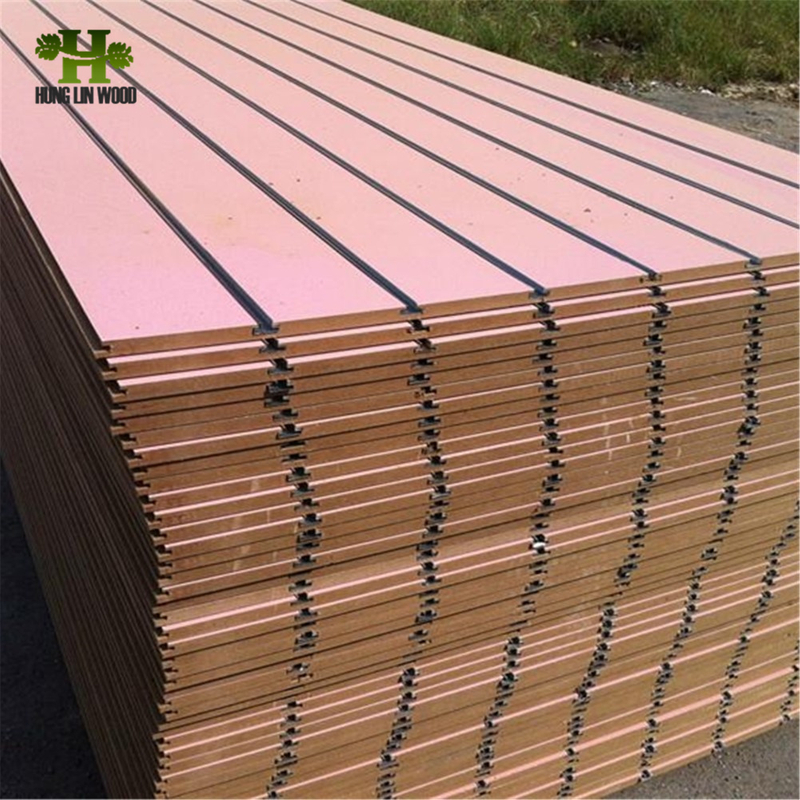

| Product Name | Slat wall Panel / Grooved board / Slotted MDF Board/Slatwall/Slot board. |
| Size | 1220x2440mm (4'x8'), 1220x1220mm( 4'x4') or customized. |
| Thickness | 15~25mm(+/-0.2mm) |
| Face/Back | Plain or Melamine paper/Acrylic/Fireproof sheet faced (one side or both side faced). |
| Surface Color | Wood grain color, solid color, customized colors and designs. |
| Surface Treatment | Matte / Embossed / Textured / Wood Embossing / Glossy/ Mosaic/ Piwen/ Magic, etc. |
| Groove Distance | 75mm / 100mm / 150mm / 200mm / 300mm,or at your request. |
| Groove Type | Rectangle, Ellipse, Trapezoid or as requested. |
| Groove No. | 7~21 grooves or with one or two half grooves on the side at your request. |
| Groove Direction | 1220mm direction or 2440mm direction. |
| Inserts | Aluminium Alloy T-bar (0.5~1mm thickness) or PVC T-bar. |
| Board Weight | 32-40kg per sheet. |
| Payment Terms | T/T or L/C at sight. |
| Delivery Time | Within 15 days after receiving deposit or original L/C at sight . |
| Port Of Shipment | Qingdao port or Lianyungang port, China |
| Other Services | OEM, ODM ,as well as Building Materials Sourcing Service are available. |
PRODUCT FEATURES
1).Easy assembling, easy operation, bearing and tightly.
2).Compatible with standard slatwall accessories.
3).Strong and Durable.
4).Water and moisture resistant, easy to clean.
5).Smooth Satin finish gives high-end aesthetic appeal.
6).High scratch resistant.
7).Low formaldehyde emission.
STEPS TO CHOOSE YOUR IDEAL SLATWALL
1. Slatwall Dimensions
Thickness:15mm, 16mm, 18mm, 21mm, 25mm, etc.
| 4ft*8ft slatwall panels | 1220mm*2440mm slatwall panels are what you need if you are looking to cover a large area and would like less joins. |
| 4ft*4ft slatwall panels | 1220mm*1220mm slat wall panels are pefect if you need to cover a small area or are looking for a DIY installation. |
2. Slatwall Space Between
| Standard Grooves | Grooves Quantity | The amount of distance between each slatwall groove is referred to as On Center(OC).100mm OC slatwall, your slatwall will have 100mm between each groove.100mm standard size slatwall panel that creates more display space by having 23 slatwall groove per verticle sheet | |
| SW01/03 | SW02 | ||
| 75mm OC | 15 | 31 | |
| 100mm OC | 11 | 23 | |
| 150mm OC | 7 | 15 | |
| 200mm OC | 5 | 11 | |
| 250mm OC | 3 | 8 | |
3. Slatwall Orientations
1220*2440mm Slatwall panels are available in 2 different orientations.
You have them 2440mm high by 1220mm wide.
This orientation is known as "Portrait" and will mean you have 23 slots each one spaced 100mm apart .
The other orientation we can do is 1220mm high by 2440mm wide.
This is known as"Landscape' and will give you 12 slots along the width each one 2440mm long.
4. Slatwall Groove Shapes
5. Slatwall Edge Finish
Half groove(1/2 groove at the top and bottom to allow the panels to be joint) on single or both sides is available.
6. More than 300 different surface colors and designs are available.
