1220*2440/1160*2400 28mm Thickness Container Floor Plywood

Hunglin container floor plywood are all made of import hardwood , and apitong panels on F/B.
Hardwood is the only choice of container flooring manufacturing material, the growth cycle of imported hardwood is about 50 years, high density and compressive performance.
Our products using imported hardwood and apitong from Burma, accordance 3*3 special structure  for container , to ensure the product in stable quality. The core is composed by 21 layers of equal thickness veneer and two layers apitong wood panel on face by waterproof glue, total thickness is fixed at 28±0.5mm.
Availability:
Quantity:
Inquire Add to Basket

  • 010408

  • Hunglin

  • 4412330090

集装箱地板内容图

Size

1160*2400mm, 1220*2440mm, 640*1800mm, 640*2400mm

Thickness

28mm

Core

21 Layers Euclyptus/Birch/Hardwood core (Tropical hardwood core)

Face/back

Natural Keruing/ Gurjan/ Apitong

Glue

Melamine /Phenolic WBP glue

Grade

A/B

Technical Datas

Density

780kg/m3

Moisture

8%-12%

Moisture content

≤10%

Modulus of elasticity

≥ 5000Mpa

Static bending strength

≥30Mpa

Surface bonding strength

≥1.60Mpa

Internal bonding strength

≥0.90Mpa

Screw holding ability

Face

 ≥1900N

Edge

 ≥1200N

Certification

ISO9001:2000, CE, CARB, FSC

Supply ability

3000 CBM/Month

Loading Port

Qingdao

MOQ

1x20' FCL

Packing

Standard export pallet package or break bulk package

Pallet Package

Inner

0.20mm plastic bags

Outer

Covered with plywoods or cartons and then steel strips for strength

Delivery time

Within 15 days on receipt of deposit or original L/C

Payment

T/T, 100% irrevocable LC at sight

Product Features

  • Density: 800 kg/m3 or more, China nation standards:≥750kg/m3.

  • Short Span Test: up 7260N.

  • Hardwood core materials from Africa/ Southeast Asia forest.

  • F & B side coverred by apitong panel from Burma.

  • High quality waterproof glue, adding Australia AQIS repellents, preservatives.

  • Capacity100,000 CBM/year, can meet 20', 40', 45', 48', 53' dry container's demand and any special requirements.

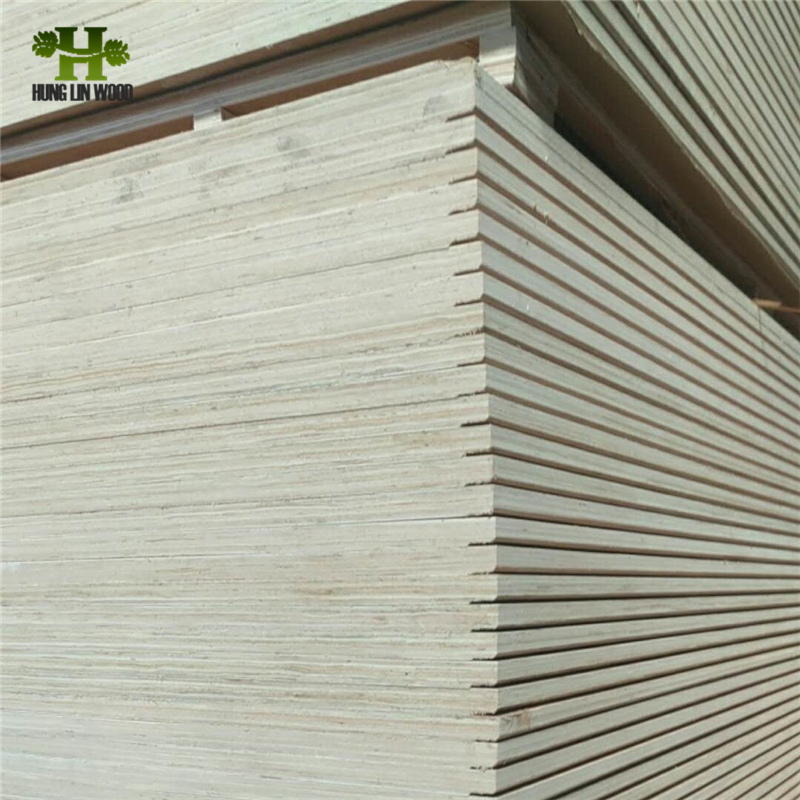

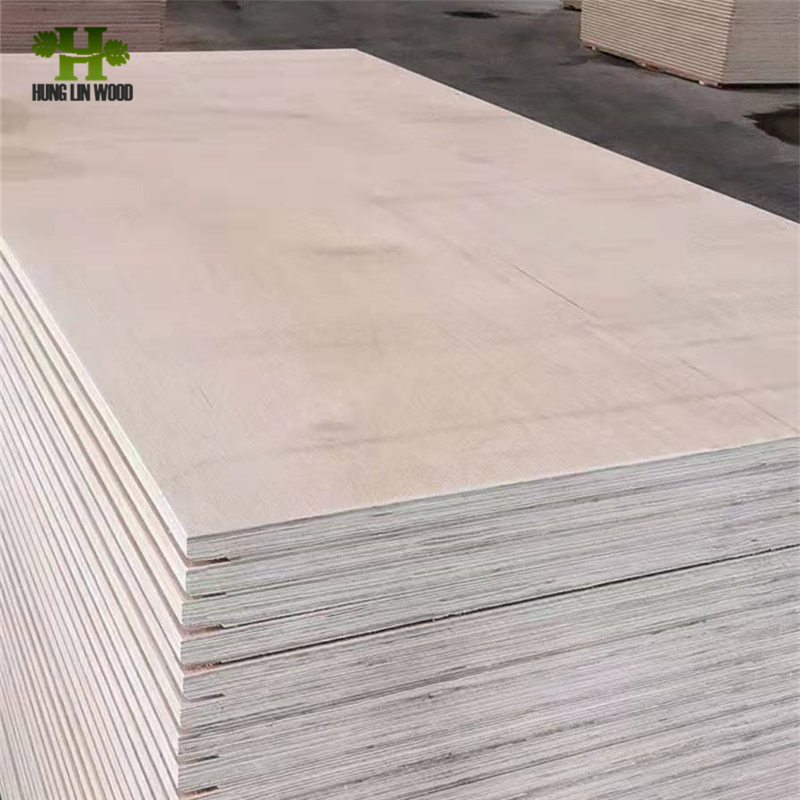

集装箱地板产品配图

集装箱地板产品配图 (2)

Stirct quality control of the production process

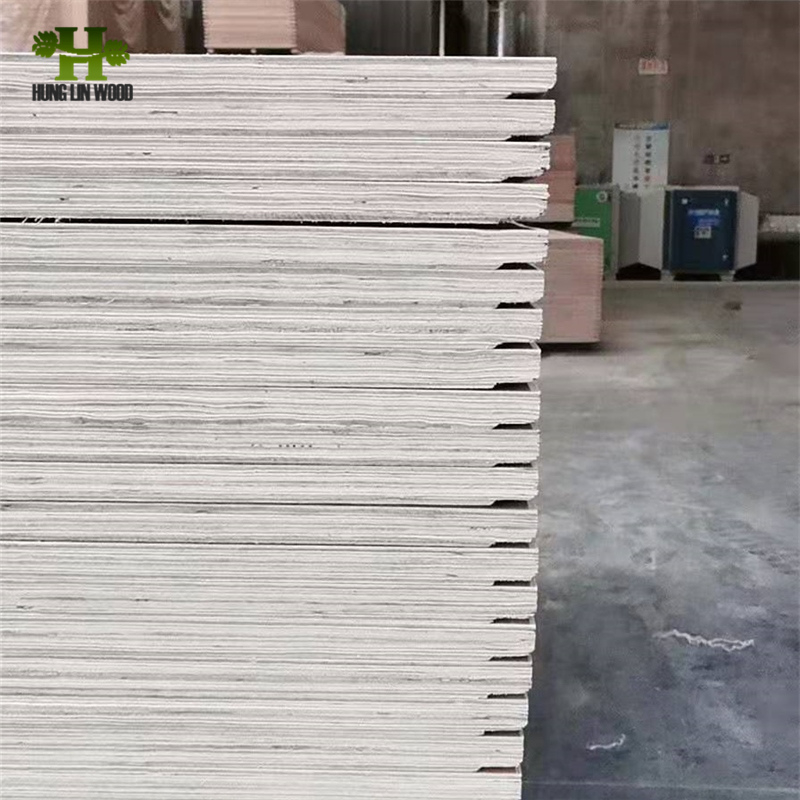

集装箱地板生产


Standard export grade package, Suitable to seaworthy transportation

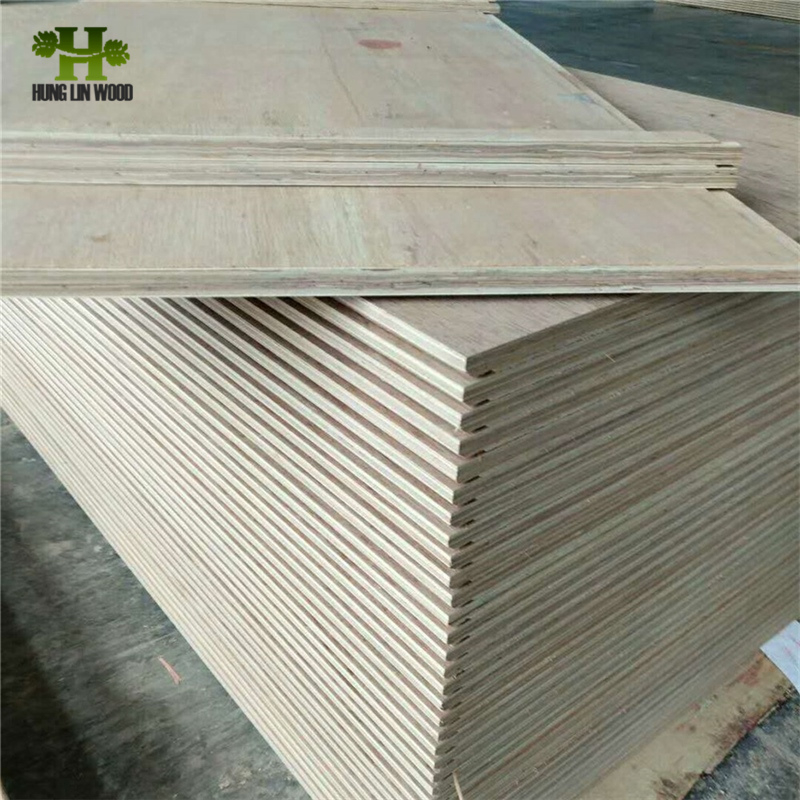

胶合板包装装箱
