1220*2440mm Film Faced Plywood for Construction Application

Share to:

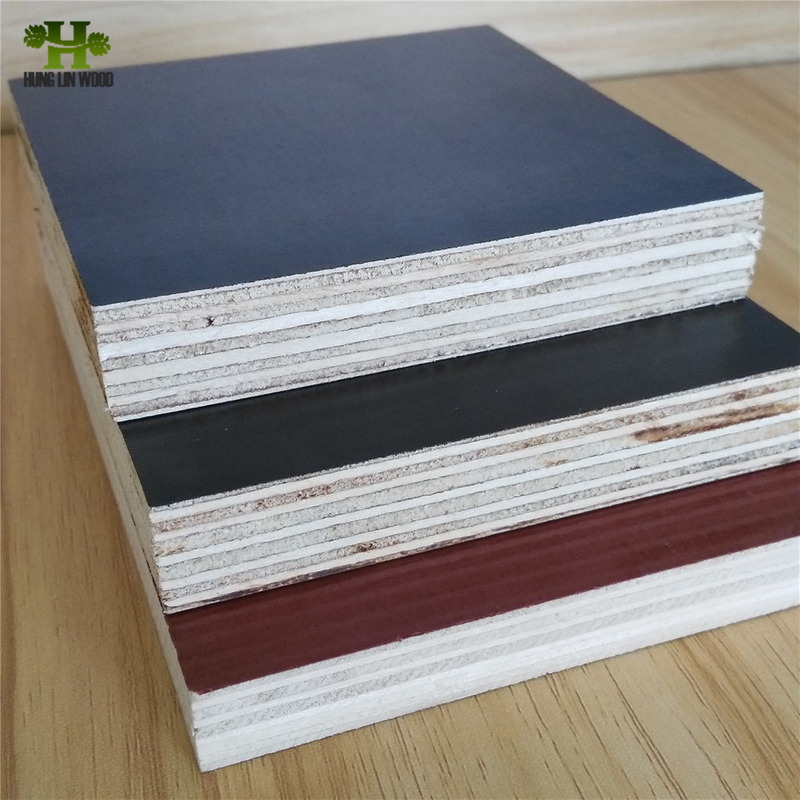

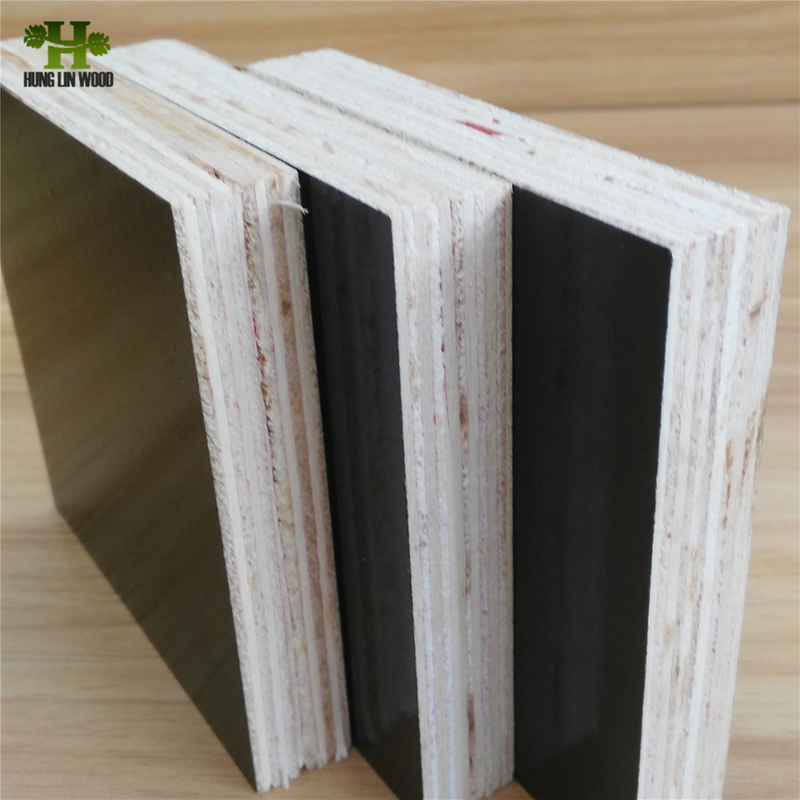

1220*2440mm Film Faced Plywood for Construction Application

Film faced plywood is also called formwork plywood, shuttering plywoods, concrete form. It is the special plywood with two sides coated with wearable and water proof film. The film is adhesive impregnated paper, which are different from melamine paper overlay, PVC, MDO and HDO. The function of the film is to protect the inside wood from moisture, water, weather and extend the plywood’s service life. Film faced plywood can be used in harsh and outside environment: shuttering plywood, formwork plywood, concrete formwork, floorboard, vehicle building.

Availability:

Quantity:



Inquire Add to Basket

Model:
Hl-010301
Brand:
Hunglin
Code:
4412330090

China supplier marine plywood

Commodity	Marine Plywood/Film Faced Plywood for Construction
Color of Film	Black, Brown, Dark Brown, Red.
Density of Film	120G/M2, 135G/M2,150G/M2, 180G/M2, 220G/M2, 240G/M2
Finish of Film	Mirror, High Glossy, Glossy, Matt, Wire-Mesh, Anti-slip
Glue Type	MR, E1, E2, Melamine, WBP, Phenolic WBP
Plywood Core	Poplar, Combi, Eucalyptus, Birch, Bamboo, Mixed Hardwood, etc.
Thickness	6mm--30mm
Thickness Tolerance	±0.5mm
Plywood Size	610x2440mm, 615x2500mm, 1200x1800mm, 1200x2400mm, 1200x1830mm, 1220x2440mm, 1250x2500mm,1500x3000mm
Edges Processing	By waterproof Acrylic Pain
Time of Usage	≥15-25 Times
Delivery Time	Within 15 days on receipt of deposit or original L/C.
Payment Terms	15 days upon the receipt of 30% T/T deposit or L/C at sight
Package & Loading	Loading with pallets or loose loading.
Supply Ability	5000 CBM/Month

Formwork Plywood Concrete Form shuttering plywood Marine Plywood Construction Pannel WBP Glue Plywood

Board Density	>530KGS/M3 (Poplar Core)
	>630KGS/M3(Mixed Hardwood Core)
	>700KGS(Birch Core)
	>700KGS(Bamboo Core)
Moisture	≤9%
Bonding Strength	≥0.7MPa
Abrasion	≤0.1G.100R
Impulsion	40KJ/M2
Modulus of Elasticity	≥5000MPa
Bending Strength	≥40MPa
Warp Degree	≤1%
Thickness Tolerance	±0.5MM
Thickness Expansion Rate	≤8%

Board Density	>530KGS/M3 (Poplar Core)
	>630KGS/M3(Mixed Hardwood Core)
	>700KGS(Birch Core)
	>700KGS(Bamboo Core)
Moisture	≤9%
Bonding Strength	≥0.7MPa
Abrasion	≤0.1G.100R
Impulsion	40KJ/M2
Modulus of Elasticity	≥5000MPa
Bending Strength	≥40MPa
Warp Degree	≤1%
Thickness Tolerance	±0.5MM
Thickness Expansion Rate	≤8%

Loading Quantity	20' Container (Pallet Packing)	8 Pallets/ 22 CBM
	20' Container (Loose packing)	26 CBM
	40' container (pallet packing)	16 Pallets / 43 CBM

Loading Quantity	20' Container (Pallet Packing)	8 Pallets/ 22 CBM
	20' Container (Loose packing)	26 CBM
	40' container (pallet packing)	16 Pallets / 43 CBM
