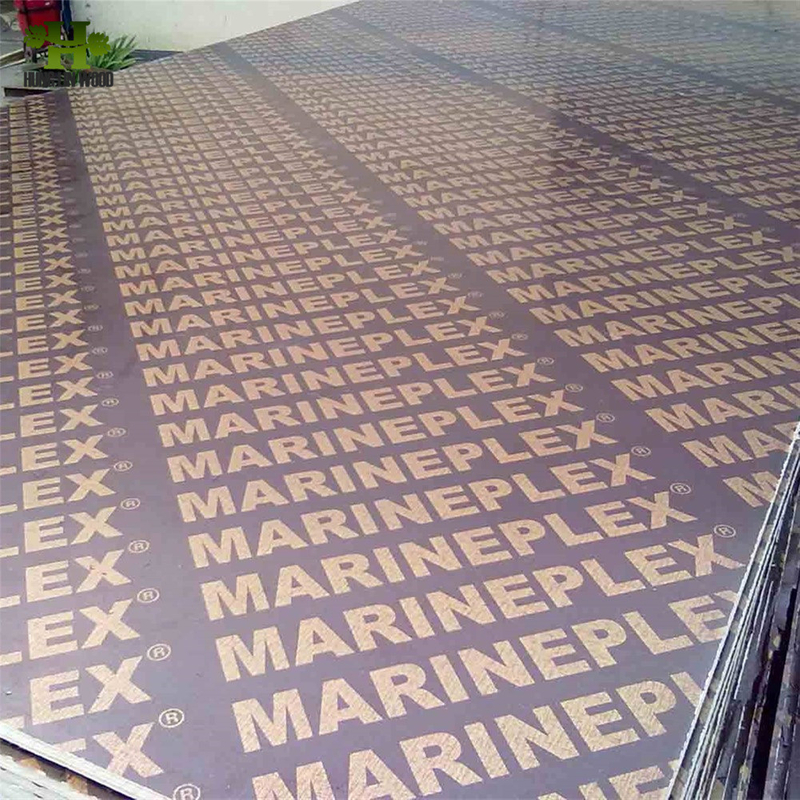

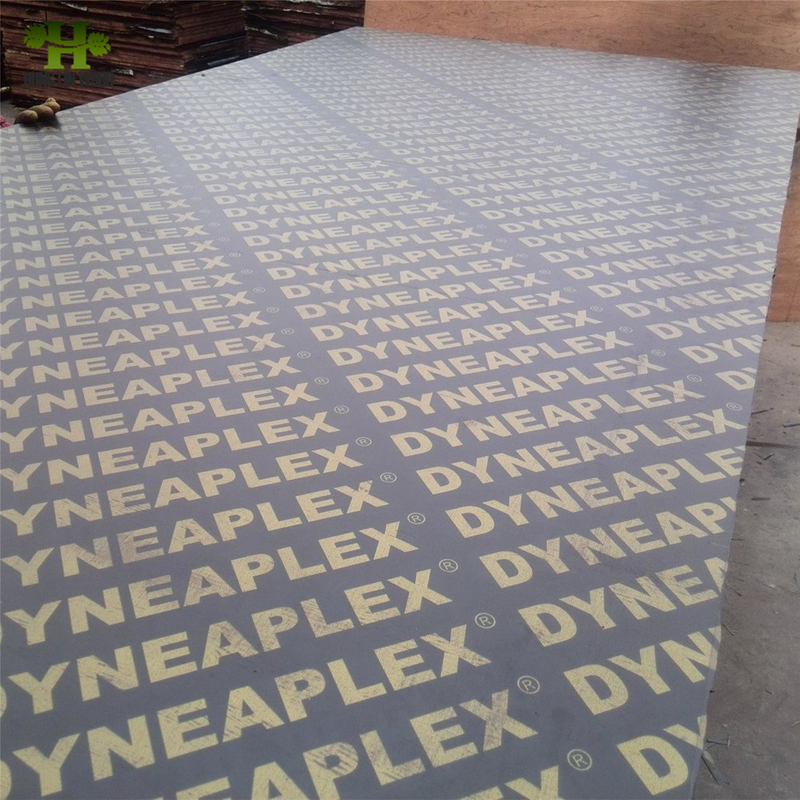

Construction Plywood with Black Film (size 1220mm*2440mm)

Film faced plywood is also called formwork plywood, shuttering plywoods, concrete form. It is the special plywood with two sides coated with wearable and water proof film. The film is adhesive impregnated paper, which are different from melamine paper overlay, PVC, MDO and HDO. The function of the film is to protect the inside wood from moisture, water, weather and extend the plywood’s service life. Film faced plywood can be used in harsh and outside environment: shuttering plywood, formwork plywood, concrete formwork, floorboard, vehicle building.
Availability:
Quantity:
  • Hl-0103133

  • Hunglin

  • 4412330090

China supplier marine plywood

Commodity

Marine Plywood/Film Faced Plywood for Construction

Color of Film

Black, Brown, Dark Brown, Red.

Density of Film

120G/M2, 135G/M2,150G/M2, 180G/M2, 220G/M2, 240G/M2

Finish of Film

Mirror, High Glossy, Glossy, Matt, Wire-Mesh, Anti-slip

Glue Type

MR, E1, E2, Melamine, WBP, Phenolic WBP

Plywood Core

Poplar, Combi, Eucalyptus, Birch, Bamboo, Mixed Hardwood, etc.

Thickness

6mm--30mm

Thickness Tolerance ±0.5mm

Plywood Size

610x2440mm, 615x2500mm, 1200x1800mm, 1200x2400mm, 1200x1830mm, 1220x2440mm, 1250x2500mm,1500x3000mm

Edges Processing

By waterproof Acrylic Pain

Time of Usage ≥15-25 Times
Delivery Time Within 15 days on receipt of deposit or original L/C.
Payment Terms 15 days upon the receipt of 30% T/T deposit or L/C at sight
Package & Loading Loading with pallets or loose loading.
Supply Ability 5000 CBM/Month

PERFORMANCE

1. If put in boiling water for 48 hours, it is still glue-sticking and non-deformed
2. Physical mood is better than iron moulds and can satisfy the requirements of constructing mould, while the iron ones are easy to  be deformed and can hardly recover its smoothness even after repairing
3. Solves the problems of leaking and rough surface during constructing process
4. Particularly suitable for watering concrete project because it can make the concrete surface smooth and flat
5. Realizing a higher economic profits

Board Density>530KGS/M3 (Poplar Core)
>630KGS/M3(Mixed Hardwood Core)
>700KGS(Birch Core)
>700KGS(Bamboo Core)
Moisture≤9%
Bonding Strength≥0.7MPa
Abrasion≤0.1G.100R
Impulsion40KJ/M2
Modulus of Elasticity≥5000MPa
Bending Strength≥40MPa
Warp Degree≤1%
Thickness Tolerance±0.5MM
Thickness Expansion Rate
≤8%

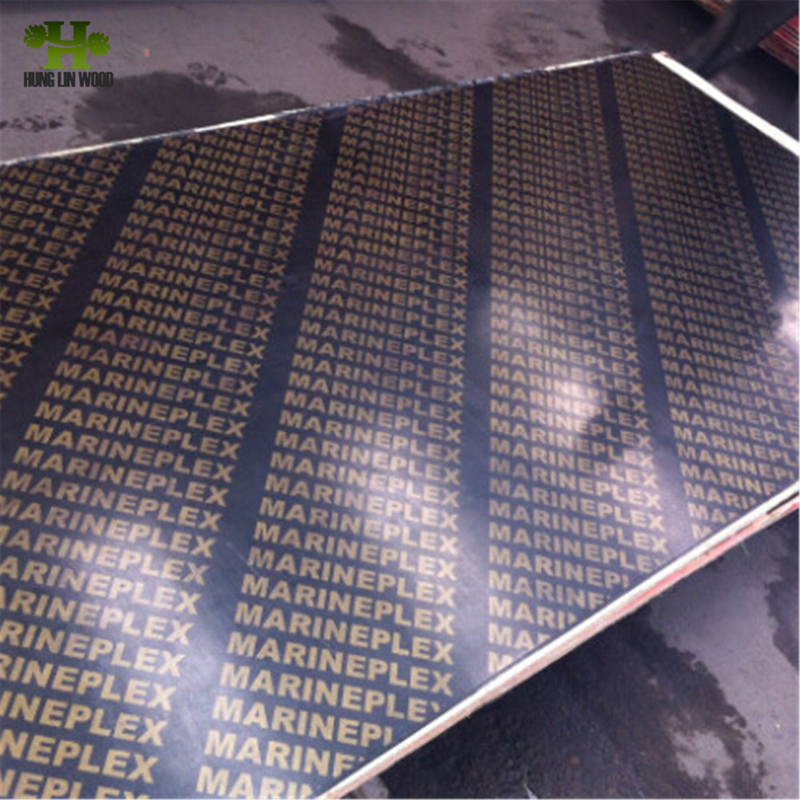

BLACK FILM FACED PLYWOOD

黑膜


BROWN FILM FACED PLYWOOD

棕膜


RED FILM FACED PLYWOOD

红膜


ANTI SLIP FILM FACED PLYWOOD

防滑

PRODUCT PRODUCTION

模板生产


PACKAGE & LOADING

Loading Quantity
20' Container (Pallet Packing)
8 Pallets/ 22 CBM
20' Container (Loose packing)
26 CBM
40' container (pallet packing)
16 Pallets / 43 CBM


胶合板包装装箱
