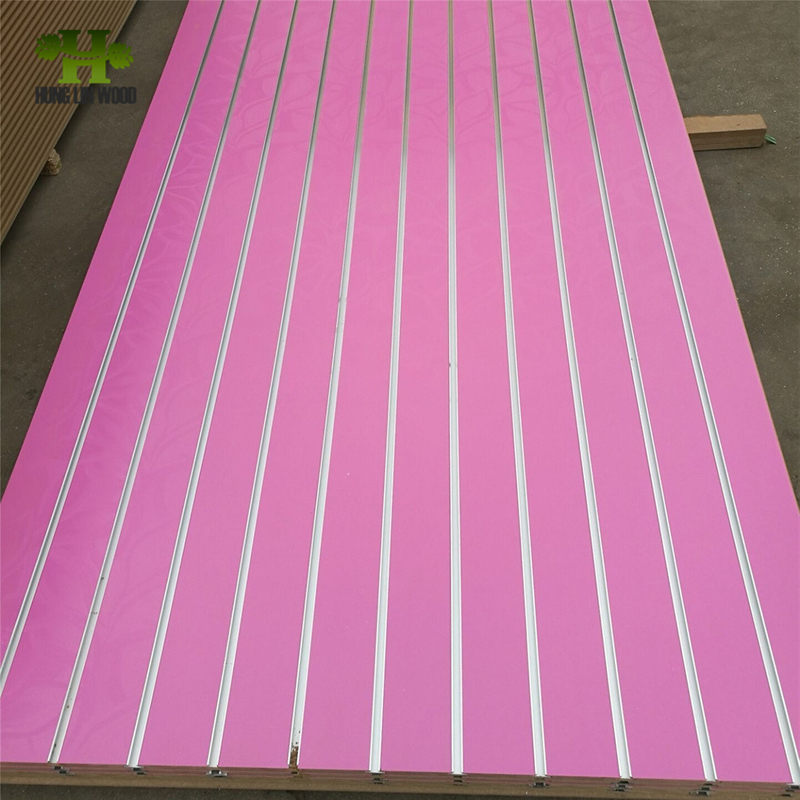

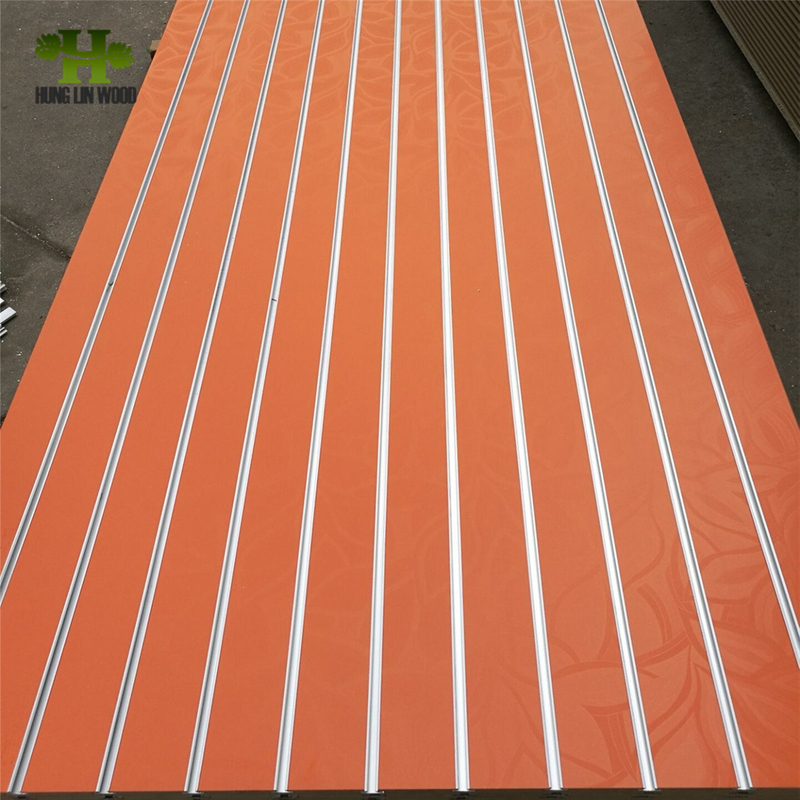

Melamine Grooved/Slotted MDF&Slat Wall with Aluminium Inserts

MDF Sltawall (also known as slotted MDF) is a buliding material used in shopfitting for wall coverings or display fixtures. It consists of panels usually 4ft by 8ft,made with horizontal grooves that are configured to accept a variety of merchandising accessories. The panels are typically made from MDF,with a finish such as melamine paper pressed or laminated onto one or both sides. Grooves are then machined into the board and painted or fitted with plastic or aluminum inserts. which is widely used in supermarkets, shops, showrooms as shelves to hang and display small commodities. With good properties, such as easy fabricability, anti-static, easy cleaning, long-lasting and no seasonal effect.
Availability:
Quantity:
  • HL-030133

  • Hunglin

  • 4411142900

image_tid=25&id=NHbEjhrlsupa&cache=0&lan_code=0

PRODUCT DESCRIPTION

Product Name  Slat wall Panel / Grooved board / Slotted MDF Board/Slatwall/Slot board.
Size 1220x2440mm (4'x8'), 1220x1220mm( 4'x4') or customized.
Thickness 15~25mm(+/-0.2mm)
Face/Back Plain or Melamine paper/Acrylic/Fireproof sheet faced (one side or both side faced).
Surface Color Wood grain color, solid color, customized colors and designs.
Surface Treatment Matte / Embossed / Textured / Wood Embossing / Glossy/ Mosaic/ Piwen/ Magic, etc.
Groove Distance 75mm / 100mm / 150mm / 200mm / 300mm,or at your request.
Groove Type Rectangle, Ellipse, Trapezoid or as requested.
Groove No. 7~21 grooves or with one or two half grooves on the side at your request.
Groove Direction 1220mm direction or 2440mm direction.
Inserts Aluminium Alloy T-bar (0.5~1mm thickness) or PVC T-bar.
Board Weight 32-40kg per sheet.
Payment Terms T/T or L/C at sight.
Delivery Time Within 15 days after receiving deposit or original L/C at sight .
Port Of Shipment Qingdao port or Lianyungang port, China
Other Services OEM, ODM ,as well as Building Materials Sourcing Service are available.

PRODUCT FEATURES

1).Easy assembling, easy operation, bearing and tightly.
2).Compatible with standard slatwall accessories.
3).Strong and Durable.
4).Water and moisture resistant, easy to clean.
5).Smooth Satin finish gives high-end aesthetic appeal.
6).High scratch resistant.
7).Low formaldehyde emission.

image_tid=25&id=yPqtZcpIszgT&cache=0&lan_code=0

STEPS TO CHOOSE YOUR IDEAL SLATWALL
1. Slatwall Dimensions
Thickness:15mm, 16mm, 18mm, 21mm, 25mm, etc.

4ft*8ft slatwall panels 1220mm*2440mm slatwall panels are what you need if you are looking to cover a large area and would like less joins.
4ft*4ft slatwall panels 1220mm*1220mm slat wall panels are pefect if you need to cover a small area or are looking for a DIY installation.

image_tid=25&id=NIqEKBzsgrpQ&cache=0&lan_code=0

2. Slatwall Space Between

Standard Grooves Grooves Quantity The amount of distance between each slatwall groove is referred to as On Center(OC).100mm OC slatwall, your slatwall will have 100mm between each groove.100mm standard size slatwall panel that creates more display space by having 23 slatwall groove per verticle sheet
SW01/03 SW02
75mm OC 15 31
100mm OC 11 23
150mm OC 7 15
200mm OC 5 11
250mm OC 3 8

image_tid=25&id=NPktsKzjHgpQ&cache=0&lan_code=0








3. Slatwall Orientations
1220*2440mm Slatwall panels are available in 2 different orientations.
You have them 2440mm high by 1220mm wide.
This orientation is known as "Portrait" and will mean you have 23 slots each one spaced 100mm apart .
The other orientation we can do is 1220mm high by 2440mm wide.
This is known as"Landscape' and will give you 12 slots along the width each one 2440mm long.

image_tid=25&id=nLkEsOuqggzQ&cache=0&lan_code=0

4. Slatwall Groove Shapes

image_tid=25&id=nHqtjmrdZpzE&cache=0&lan_code=0

5. Slatwall Edge Finish
Half groove(1/2 groove at the top and bottom to allow the panels to be joint) on single or both sides is available.

image_tid=25&id=AIotSTzyOurQ&cache=0&lan_code=0

6.  More than 300 different surface colors and designs are available.

image_tid=25&id=wDqaKUpJauzT&cache=0&lan_code=0



Product Application
MDF slatwall panels are widely used in supermarkets, shops, showrooms as shelves to hang and display small commodities.

image_tid=25&id=wPcajupzVrgE&cache=0&lan_code=0



Package & Loading
Standard export grade package, Suitable to seaworthy transportation.

Loading quantity 20' Container (Pallet Packing) 8 Pallets / 22 CBM
20' Container (Loose packing) 26 CBM
40' container (pallet packing) 16 Pallets / 43 CBM

image_tid=25&id=wIctSPrgqzuE&cache=0&lan_code=0


image_tid=25&id=mLoESluCaprt&cache=0&lan_code=0
